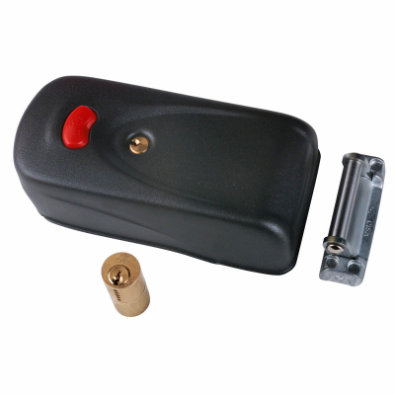

CISA LOCK 731 - 12VAC With Red Button

Description

CISA branded 12V AC electric lock with push button, suitable for use with steel gates and doors.

Complete with hold to open function, strong steel exterior casing and adjustable backset.

Technical Features

• Non handed, may be simply adapted to suit either left or right opener doors with only one straightforward step
• Variable backset from 50mm to 80mm
• Interchangeable with other electric locks, the screw holes are positioned to match other brands
• Two operating modes for the deadbolt:
  • Automatic Opening: The door is set open by the deadbolt rotation
  • Ready to Open: The deadbolt is withdrawn but the door remains in closing position
• Zinc coated epoxy powder paint finish with zinc coated internal components
• Certified to EN 14846:08: Grade 6 security
• Power Supply: 12V AC
• Absorbed Current: 3A

What’s Included

• Striker
• Cylinder
• Fixing screws
• Fixing plate
• Two spacers for the striker
• Instruction sheet
• Three keys
