JET XL - <6m 750KG


Pickup currently unavailable at Perth Warehouse

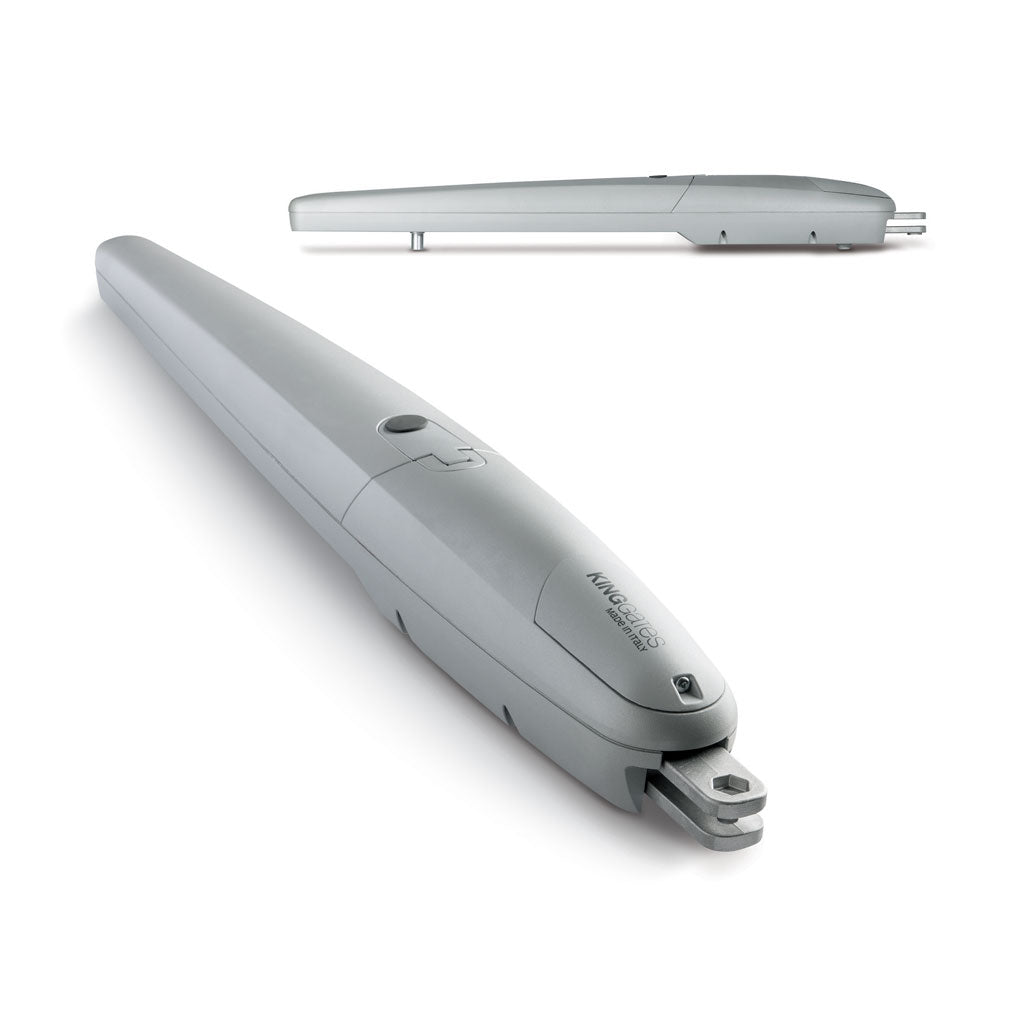

JET XL - <6m 750KG

JET XL - <6m 750KG

Perth Warehouse

Pickup currently unavailable

10/49 Biscayne Way
Jandakot WA 6164

1300 980 679
Sale price$1,205.00
Sold out

Tax included.

This product include:
-24v Swing Gate Motor JET XL for max 6m leaf x 750kg with own brackets

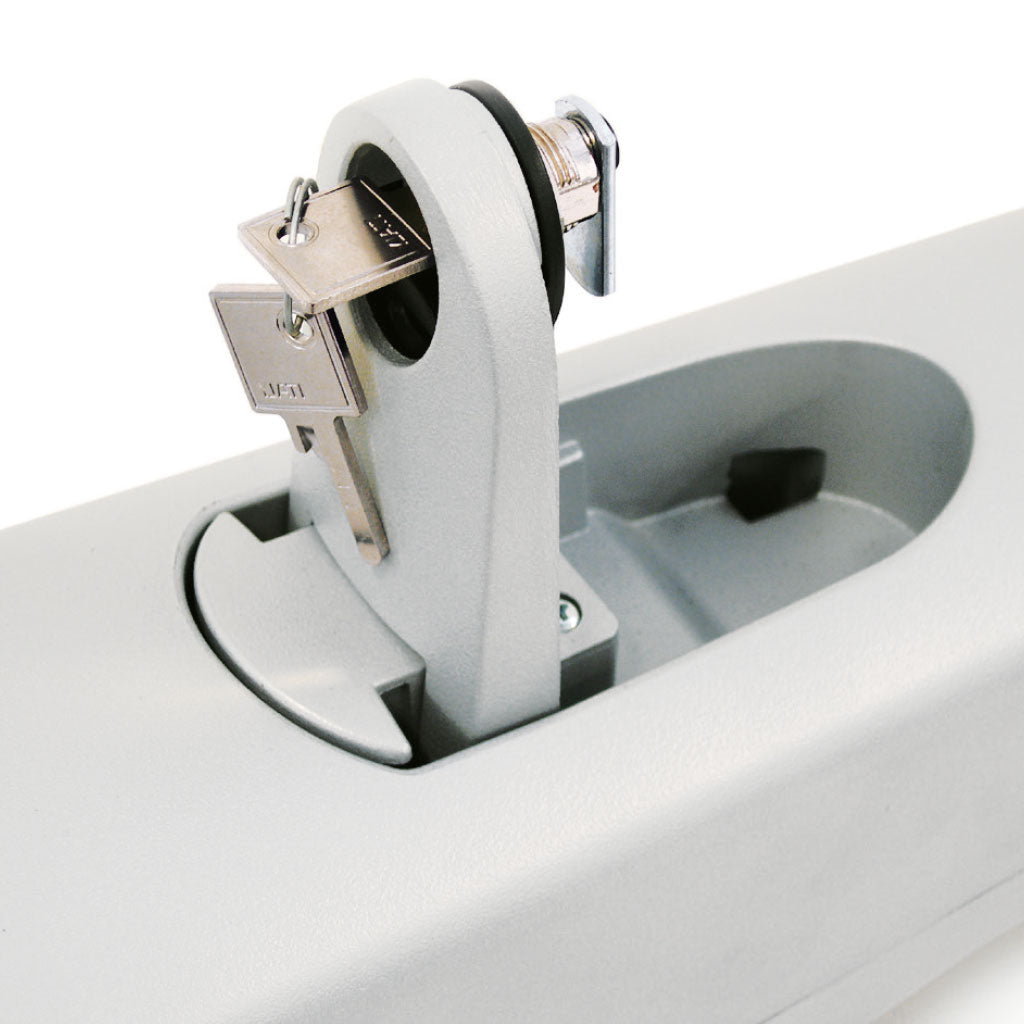

-Unlocking Key

Please add all additional accessories you may need.

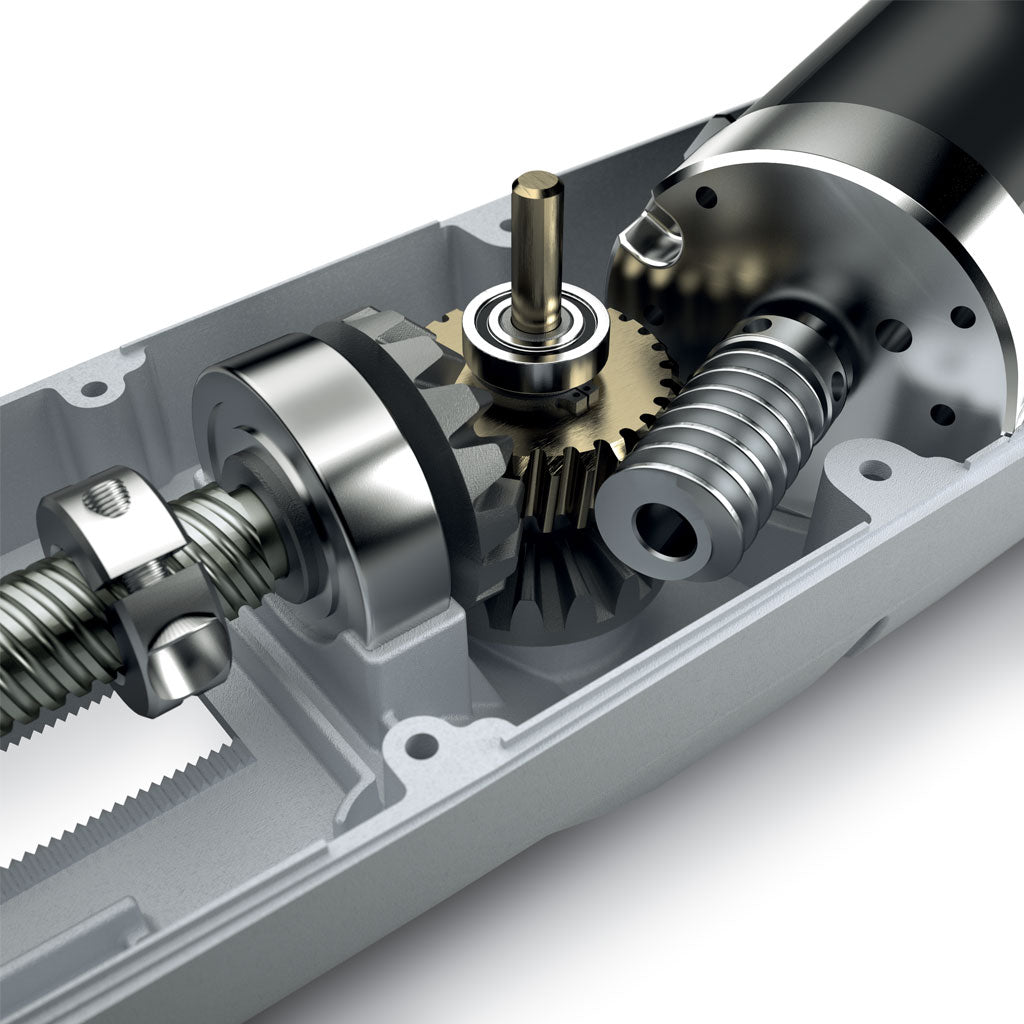

The JET XL structure is entirely manufactured from die-cast aluminium. All gears and mechanical parts are entirely made from steel and bronze; the mechanical transmission is sized to ensure maximum durability and reliability over time, also in arduous installations. Reinforced brackets with increased thickness and large holes for a sturdy installation. JET XL is a product built to last even in extreme operating conditions.

The JET XL body is divided in two separate compartments provided with a removable shell for a quick and easy access during the entire installation process. The rear fastening system with tilting forks is a simple solution that helps alignment, compensating errors up to +/- 5 °. The mechanical limit switch adjustment during opening and closing procedures is done from above, by removing the shell that covers the endless screw. The operation is effortless because everything is close at hand and well visible, allowing a quick adjustment. Furthermore, by opening the connection compartment, there is easy access to the terminal board to complete the wiring using the cable bushing provided. Operating points are always in plain sight.
